Illinois precision equipment manufacturer sourcing 850 aerospace brackets made critical process selection error: specified separate CNC milling operations (complex pocket geometry) + lathe turning (cylindrical boss features) requiring two setups, two fixtures, intermediate quality checks. Result: $127/part cost (78-minute total cycle time: 45 min milling + 28 min turning + 5 min handling/inspection), ±0.02mm tolerance stack-up accumulation between operations causing 8.5% rejection rate, 14-day lead time. Solution: Switch to mill-turn machining single-setup approach—$73/part cost (42-minute cycle time, eliminated handling), ±0.008mm tolerance consistency, 7-day lead time, 1.2% rejection rate. Savings: $45,900 annually (850 parts × $54 savings), eliminated rework costs, improved delivery reliability.
This demonstrates process selection’s massive impact: integrated mill-turn vs separate milling/turning affects cost 40-75%, tolerance consistency (single setup eliminates transfer errors), lead time through reduced handling—making CNC milling for complex geometries vs turning vs combined approach critical purchasing decision determining project economics and quality outcomes.
CNC Milling vs Turning vs Mill-Turn: Comprehensive Comparison
| Process | Best Applications | Tolerance Capability | Typical Cycle Time (50mm part) | Cost ($/part, 100 qty) | Setup Cost | Advantages | Limitations |
|---|---|---|---|---|---|---|---|
| 3-Axis CNC Milling | Flat parts, pockets, slots, plates, complex 2.5D geometry | ±0.01-0.05mm | 15-45 min | $45-$180 | $85-$250 | Complex geometry, multi-surface machining, tight positional tolerances | Inefficient for cylindrical parts, longer cycle times for rotational features |
| 5-Axis CNC Milling | Complex 3D surfaces, aerospace parts, undercuts, compound angles | ±0.008-0.025mm | 25-80 min | $120-$450 | $180-$550 | Single-setup complex geometry, eliminates repositioning errors, excellent surface finish | Higher cost, requires skilled programming, longer setup |
| CNC Turning (Lathe) | Shafts, bushings, cylinders, threaded parts, symmetrical rotation | ±0.005-0.025mm | 5-18 min | $25-$95 | $45-$180 | Fast for cylindrical parts, excellent surface finish (Ra 0.4-1.6μm), economical threading | Cannot machine off-axis features efficiently, limited to rotational symmetry |
| Mill-Turn (Multi-Tasking) | Complex parts combining cylindrical + milled features (flanges, cross-holes, pockets on shafts) | ±0.005-0.015mm | 8-35 min | $65-$280 | $120-$350 | Single setup (eliminates transfer errors), reduced cycle time vs sequential operations, tighter tolerances | Higher machine cost (passed to customer low volumes), requires advanced programming |
Decision framework: Simple cylinders/shafts → Turning. Flat parts with pockets/slots → 3-axis milling. Complex 3D surfaces → 5-axis milling. Combined cylindrical + complex features → Mill-turn.
When to Use CNC Milling for Complex Geometries
Milling optimal applications:
- Prismatic parts: Blocks, plates, brackets, housings with flat/angled surfaces
- Deep pockets/cavities: Mold bases, electronic enclosures, fluid manifolds (internal channels)
- Multi-surface contouring: Aerospace skins, automotive molds, artistic/sculptural components
- Tight positional tolerances: Bolt patterns (±0.01mm hole spacing), mating interfaces requiring precise relative positioning
- Off-axis features: Angled holes, slots at compound angles, undercuts
3-axis vs 5-axis selection:
- 3-axis: Part geometry accessible from top (Z-axis) and sides (X/Y repositioning adequate), cost-sensitive applications

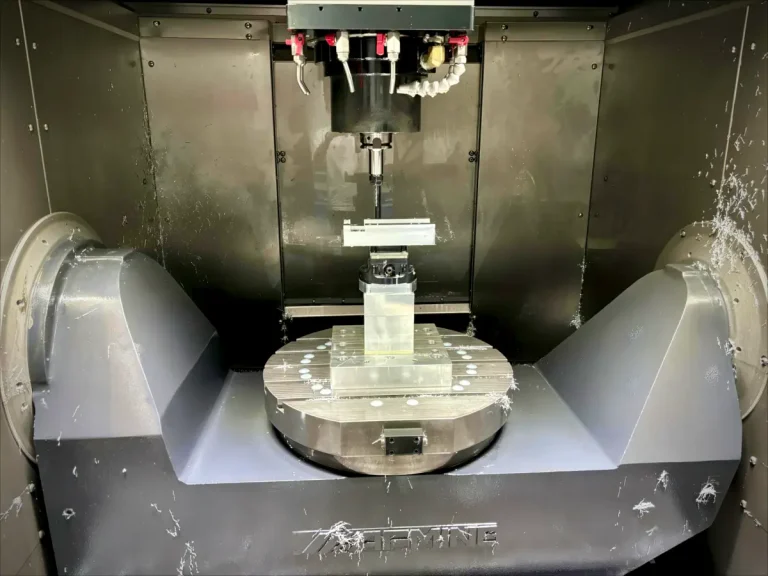

- 5-axis: Undercuts requiring tilted tool approach, complex organic surfaces (impellers, turbine blades), single-setup requirements eliminating repositioning errors
Example: Aircraft bracket—mounting holes, lightening pockets, angled bosses, stress-relief radii. 5-axis milling advantage: Complete machining single setup (vs 3-axis requiring 3-4 setups), tolerance ±0.01mm achieved (vs ±0.025-0.04mm multi-setup accumulation), 68-minute cycle (vs 95-minute multi-setup), $142/part (vs $188 multi-setup handling/programming).
CNC Turning: Speed and Precision for Rotational Parts
Turning optimal applications:
- Shafts/spindles: Motor shafts, transmission components, precision spindles (tight diameter/runout tolerances)
- Threaded components: Bolts, lead screws, threaded inserts (external/internal threads machined efficiently)
- Bushings/sleeves: Bearing housings, spacers, cylindrical inserts (ID/OD concentricity critical)
- Tapered/contoured cylinders: Nozzles, fittings, fluid connectors (complex rotational profiles)
Turning advantages:
- Cycle time: Cylindrical part 5-18 minutes turning vs 25-55 minutes milling equivalent geometry (60-70% faster)
- Surface finish: Ra 0.4-1.6μm achievable directly (polished shaft finish without secondary operations)
- Threading efficiency: Cut threads directly vs milling (thread milling 3-5× slower, lower strength)
- Material removal rate: 150-400 cm³/min turning vs 50-150 cm³/min milling (aluminum)
Turning limitations:
- Off-axis features (cross holes, flats, keyways) require secondary milling operations (2-setup approach increasing cost/tolerance stack-up)
- Complex 3D surfaces impossible (limited to rotational symmetry)
Example: Hydraulic cylinder shaft—50mm diameter × 200mm length, external threads M48×2, cross-hole for pin, mounting flat. Turning alone: Cannot machine cross-hole/flat (separate milling required, 2 setups). Mill-turn: Complete part single setup, 35-minute cycle vs 48-minute separate operations.
Mill-Turn Machining: Integrated Solution Benefits
Mill-turn advantages eliminating separate setups:
Single-setup accuracy: Part fixtured once, all operations (turning OD, milling pockets, drilling cross-holes, threading) completed without re-chucking. Tolerance improvement: ±0.005-0.015mm achievable vs ±0.02-0.04mm typical multi-setup stack-up.
Cycle time reduction: Eliminates handling between machines (2-8 minutes per transfer), combined programming optimizes tool paths, overlapping operations (mill while turning spindle indexes). Typical savings: 25-45% vs sequential milling + turning.
Cost efficiency (volume-dependent):
- Low volume (<100 parts): Mill-turn 15-30% more expensive (higher machine rate $95-$180/hr vs $65-$120/hr separate)
- Medium volume (100-1,000): Mill-turn 10-25% cheaper (setup reduction, cycle time savings offset machine rate)
- High volume (>1,000): Mill-turn 25-50% cheaper (amortized setup, minimized handling, reduced scrap)
Ideal mill-turn applications:
- Flanged shafts (cylindrical body + radial flange with bolt holes)
- Actuator housings (cylindrical bore + mounting pockets/slots)
- Transmission components (gears with off-axis lubrication holes)
- Medical instruments (cylindrical handles + complex working ends)
Example: Robotic joint component—40mm OD cylinder, internal bore ±0.008mm, 8× radial M6 threaded holes, 4× axial slots, mounting flange. Mill-turn: 28-minute cycle, ±0.009mm tolerance, $82/part (250 qty). Separate operations: 52-minute total cycle (32 min turning + 20 min milling), ±0.025mm tolerance, $128/part. Advantage: 46% cycle reduction, 36% cost savings, 2.8× tighter tolerances.
Material Selection Impact on Process and Cost
| Material | Turning Speed (SFM) | Milling Speed (SFM) | Tool Life (Relative) | Machinability Rating | Cost ($/kg) | Cost Impact vs Aluminum |
|---|---|---|---|---|---|---|
| Aluminum 6061 | 800-1,200 | 600-1,000 | 100% (baseline) | 90% | $4-$7 | Baseline |
| Stainless 304 | 200-400 | 150-350 | 40% | 45% | $8-$15 | +80-120% machining cost |
| Titanium Ti-6Al-4V | 150-300 | 100-250 | 25% | 30% | $28-$55 | +200-350% machining cost |
| Brass C360 | 1,000-1,500 | 800-1,200 | 150% | 100% | $8-$14 | -15-25% machining cost |
| Tool Steel D2 | 100-200 | 80-180 | 30% | 35% | $6-$12 | +120-180% machining cost |
| PEEK Polymer | 600-900 | 500-800 | 200% | 85% | $85-$180 | +60-90% material, -40% machining |
Machinability impact: Titanium 3-4× longer cycle time vs aluminum (slower speeds, more passes), 4× tool wear (carbide inserts $12-$25 each, titanium 25-50 parts/insert vs aluminum 100-200 parts).
Tolerance Specification: Cost vs Function Balance
Standard tolerances by process:
- Turning: ±0.005-0.025mm diameter, ±0.05-0.1mm length
- 3-axis milling: ±0.01-0.05mm linear dimensions, ±0.025-0.08mm hole positions
- 5-axis milling: ±0.008-0.025mm all features
- Mill-turn: ±0.005-0.015mm all features
Cost impact of tight tolerances:
- ±0.05mm (standard): Baseline cost
- ±0.01mm (precision): +20-40% (slower feeds, additional finishing passes, inspection time)
- ±0.005mm (ultra-precision): +50-100% (grinding may be required, CMM inspection mandatory, environmental control)
Strategic tolerance application: Critical mating surfaces/functional dimensions → tight tolerances. Non-critical features (cosmetic surfaces, clearance areas) → standard tolerances. Example: Shaft bearing journal ±0.005mm (function-critical), overall length ±0.1mm (non-critical) vs uniform ±0.01mm throughout (+35% unnecessary cost).
Lead Time and Cost Structure
Typical lead times (prototype quantities 1-25 parts):
- 3-axis milling: 5-12 days
- 5-axis milling: 7-15 days (programming complexity)
- Turning: 3-8 days
- Mill-turn: 5-10 days
Cost breakdown (typical $100 machined part):
- Material: $15-30 (15-30%)
- Machine time: $35-50 (35-50%)
- Setup/programming: $12-25 (12-25%)
- Tooling: $8-15 (8-15%)
- Inspection/QC: $5-12 (5-12%)
- Overhead/profit: $10-20 (10-20%)
Volume impact: Low volume (<100) setup dominates (30-40% total cost). High volume (>1,000) machine time dominates (50-60%), setup amortized.
Supplier Evaluation: Critical Capabilities
Multi-axis capability verification: Request sample parts demonstrating 5-axis complexity or mill-turn integration—portfolio showing only 3-axis indicates limited capability for complex parts.
DFM feedback quality: Strong suppliers review drawings suggesting tolerance rationalization, material alternatives, process optimization before quoting—passive order-takers provide quote without improvement suggestions.
Inspection documentation: CMM dimensional reports, material certifications, first article inspection (FAI) protocols indicating quality system maturity.
Companies like FastPreci combine advanced CNC milling for complex geometries with integrated mill-turn machining capabilities—enabling optimal process selection matching part requirements, providing engineering feedback optimizing designs for manufacturability, delivering consistent quality through documented inspection protocols, critical for buyers requiring both technical capability and partnership approach.
Strategic Procurement Decision Framework
Part analysis: Primarily cylindrical (>70% rotational features) → Turning. Primarily flat/pocketed (<20% rotational) → Milling. Combined (30-70% rotational + complex features) → Mill-turn evaluation.
Volume consideration: <100 parts → lowest setup cost process. 100-1,000 → cycle time optimization. >1,000 → dedicated process investment (fixtures, tooling) justified.
Tolerance requirements: Standard (±0.025-0.05mm) → 3-axis adequate. Precision (±0.01mm) → 5-axis or mill-turn. Ultra-precision (±0.005mm) → grinding may supplement.
What CNC machining process selection challenge is preventing confident sourcing decision—milling vs turning determination, mill-turn economic justification, tolerance cost trade-off analysis, or supplier capability verification?
FAQs
1. What is the difference between CNC milling and CNC turning?
CNC milling uses rotating cutting tools to shape a stationary workpiece, making it ideal for complex geometries and multi-axis parts. CNC turning rotates the workpiece against a stationary tool, making it best for cylindrical or symmetrical components like shafts and threads.
2. When should I choose mill-turn machining instead of separate processes?
Choose mill-turn machining when your part requires both rotational and complex features. It combines milling and turning in one setup, reducing setup time, improving accuracy, and lowering overall production costs.
3. What factors affect the cost of CNC milling and turning services?
Key cost factors include material type, part complexity, tolerance requirements, machining time, tooling wear, and batch size. More complex designs and tighter tolerances significantly increase cost.
4. What tolerances can CNC milling and turning achieve?
Standard CNC machining typically achieves ±0.05 mm, while high-precision applications can reach ±0.01 mm or tighter. Ultra-precision parts may go down to ±0.005 mm depending on material and machine capability.
5. How do I choose the right CNC machining supplier?
Look for suppliers with strong engineering support, multi-axis capabilities, quality certifications, and consistent communication. A reliable partner will offer design feedback, ensure tight tolerances, and recommend the best machining process for your part.
